Friday 26 January 2024

v4.3.b.Release (26-JAN-2024)

Welcome to 2024!

This release has some incremental improvements and was primarily cut to enable wider testing of new auto-package diagram population to make it easier to build navigation into the project browser, plus a useful table for reviewing requirements of function blocks in the context of the subsystems they are allocated to.

Now available on github. Don't forget to rename top-level folder SysMLHelper without the version number before moving into Profiles folder. Also ensure that previous profile is not just renamed but removed from Share/Profiles completely (as Rhapsody will open first filename it finds rather than the explicit path to .sbsx).

V4.3.b.PreRelease (26-JAN-2024):

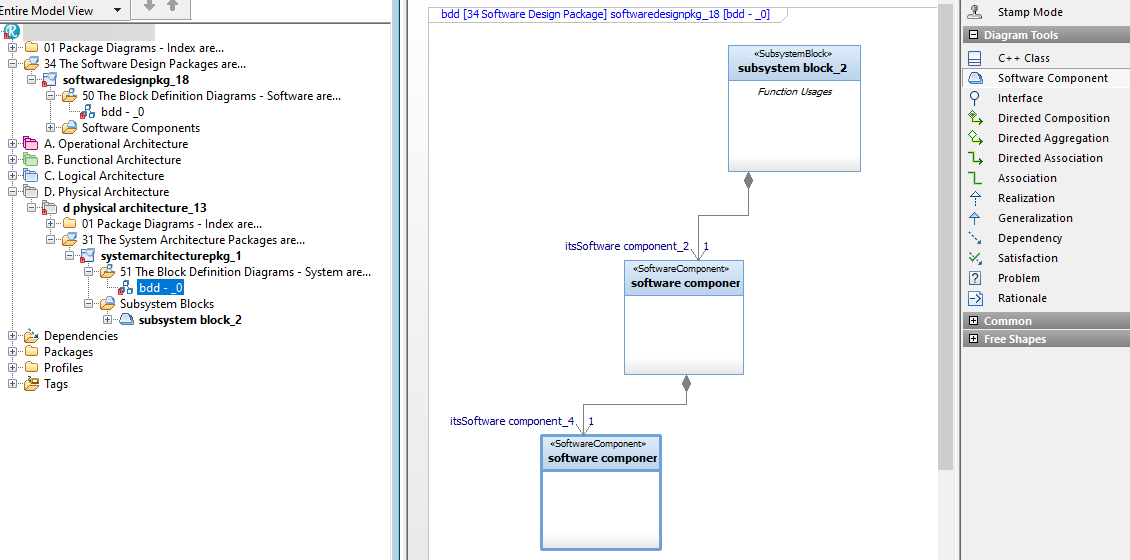

0803 19-JAN-2024: ExecutableMBSE: Loosen software design package modelling so that you can hierarchically decompose software components (F.J.Chadburn)

0804 19-JAN-2024: ExecutableMBSE: Allow software components to own full, i.e. standard, ports (F.J.Chadburn)

0805 24-JAN-2024: ExecutableMBSE: Add new Subsystem to Function Block Requirements table for system architecture and subsystem packages (F.J.Chadburn)

0806 26-JAN-2024: ExecutableMBSE: First implementation of new Package Diagram - Index auto-creation capability and associated properties (F.J.Chadburn)

0807 26-JAN-2024: ExecutableMBSE: Ensure that Package Diagram - Index auto-creation properties are taken from package, rather than project, level (F.J.Chadburn)
