Wednesday 29 November 2023

Module A Video - Create a use case package structure

This shows new project creation using the Executable MBSE profile v4.3. It steps through  creating a project structure manually for use cases, actors and requirements showing the mosaic SysML approach with different package types tailored for focused areas before using the create use case package structure menu to automate all the manual steps.

The automation approach used by the Executable MBSE profile results in faster model creation and a consistent and usable project structure, and is an example of how it's possible to extend SysML and Rhapsody to add method-aware helpers to make SysML easier to use and adopt. The steps for doing the Module A training lab are a PDF included as a controlled file in the v4.3 profile.

Monday 13 November 2023

v4.3.Release (13-NOV-2023)

This release incorporates polish that has come from doing more training material development. The v4.2 work focused on DOORS Next and Function Block workflows. For the first time, the release includes a training Lab as a controlled file in the profile, hence I have started a v4.3 development strand which the aspiration for refinement of documentation and video support.

Now available on github. Don't forget to rename top-level folder SysMLHelper without the version number before moving into Profiles folder. Also ensure that previous profile is not just renamed but removed from Share/Profiles completely (as Rhapsody will open first filename it finds rather than the explicit path to .sbsx).

V4.3.Release (13-NOV-2023):

0772 03-NOV-2023: ExecutableMBSE: Merge ibd - system and ibd - func into the ibd - func toolbar, to remove need for user to make a choice (F.J.Chadburn)

0773 03-NOV-2023: ExecutableMBSE: Add Flow to the drawing toolbar for ibd - func (F.J.Chadburn)

0774 03-NOV-2023: ExecutableMBSE: Polished further by adding unique icon for the Subsystem Interfaces Package (F.J.Chadburn)

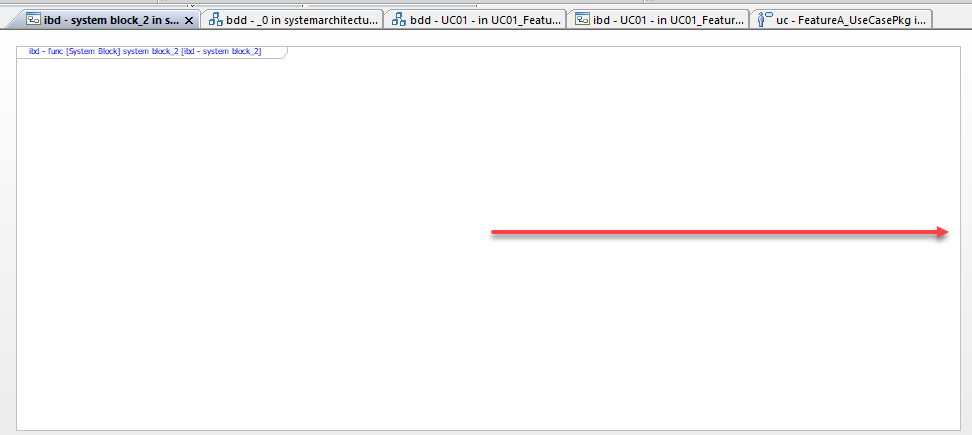

0775 03-NOV-2023: ExecutableMBSE: Tweak to widen default size of diagram frame for ibd - func to ease adding elements left to right without nudging (F.J.Chadburn)

0776 07-NOV-2023: ExecutableMBSE: Add populate menu for composition/parts classifiers as a usability enhancement (F.J.Chadburn)




0777 08-NOV-2023: ExecutableMBSE: Usability polish - Requirement Analysis menus reordered to a more natural order, e.e., Create a new requirement at top (F.J.Chadburn)

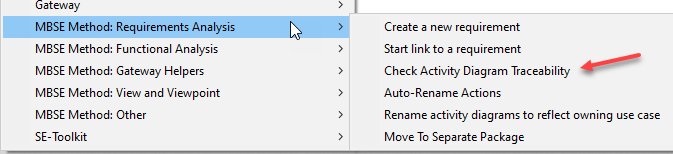

0778 08-NOV-2023: ExecutableMBSE: Usability polish - Renamed Perform traceability checks for elements on Activity Diagram to Check Activity Diagram Traceability (F.J.Chadburn)

0779 08-NOV-2023: ExecutableMBSE: Usability polish - Provide feedback that no activity diagrams if Check Activity Diagram Traceability doesn't find any to check (F.J.Chadburn)


0780 08-NOV-2023: ExecutableMBSE: When creating a requirement for a use case give it a default name based on the use case name (F.J.Chadburn)


0781 08-NOV-2023: ExecutableMBSE: As Rhapsody has two <> stereotypes, make sure that getStereotypeWith returns the SysML profile stereotype if present (F.J.Chadburn)

0783 10-NOV-2023: ExecutableMBSE: Refined hep file to remove unnecessary populate and view options from the projects and diagram right-click menus (F.J.Chadburn)

0784 10-NOV-2023: ExecutableMBSE: Usability tweak to default name of actor package name created in use case structure to include the project name (F.J.Chadburn)

0785 10-NOV-2023: SysMLHelper: Renamed profile .txt filename to stop users choosing SysMLHelper accidentally, as superseded by ExecutableMBSEProfile (F.J.Chadburn)

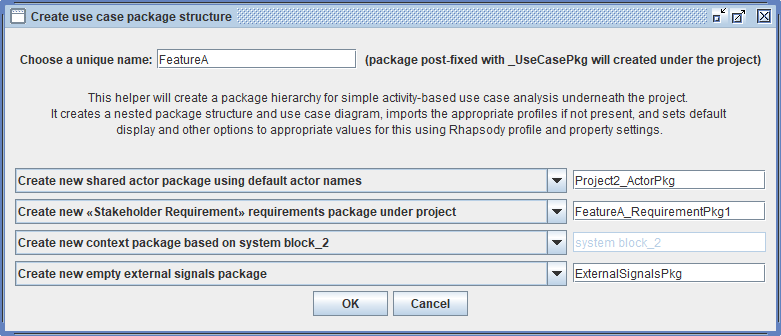

0786 10-NOV-2023: ExecutableMBSE: UI tweak to remove unnecessary width of create use case package structure dialog by removing name of project (F.J.Chadburn)

0787 13-NOV-2023: ExecutableMBSE: Changed title of use case package structure dialog to 'Create' rather than 'Populate' to align with right-click menu name (F.J.Chadburn)

0788 13-NOV-2023: ExecutableMBSE: Added PracticalMBSE-BookI-InsulinPump-ModuleA-UseCaseStructure-V2023-11-10-1123.pdf labs, to help with user ramp ups (F.J.Chadburn)





Friday 3 November 2023

v4.2.s.Rhp831.PreRelease (03-NOV-2023)

Reasonable cut of first allocation wizard functionality (not perfect but enough to be quite interesting). Also, some tweaks to requirement spec comparison with DOORS NG remote requirements specs to enable non-visible white space differences to be ignored. Plus a few incremental tweaks.

Now available on github. Don't forget to rename top-level folder SysMLHelper without the version number before moving into Profiles folder. Also ensure that previous profile is not just renamed but removed from Share/Profiles completely (as Rhapsody will open first filename it finds rather than the explicit path to .sbsx).

V4.2.s.Rhp831.PreRelease (03-NOV-2023):

0762 26-OCT-2023: ExecutableMBSE: Change default property for AutoGenerationOfPortsForLinksPolicy to Always to speed up usability/reduce pop-ups (F.J.Chadburn)

0763 26-OCT-2023: ExecutableMBSE: Fix crash putting a flow on a flow connector by allowing Flows to be owned by feature and function blocks and package (F.J.Chadburn)

0764 30-OCT-2023: ExecutableMBSE: Added property to enable requirement specification matching to ignore white space char diffs from non-breaking space chars (F.J.Chadburn)

0765 31-OCT-2023: ExecutableMBSE: Checkpoint of allocation wizard creating internal flow connectors in the allocated architecture (F.J.Chadburn)

0766 31-OCT-2023: ExecutableMBSE: Added NonVisibleWhiteSpaceCharsRegEx property to enable tweaking of requirement specification matching without needing s/w change (F.J.Chadburn)

0767 31-OCT-2023: ExecutableMBSE: Get IBD to be automatically created under Feature when you create a feature function package (F.J.Chadburn)



0768 03-NOV-2023: ExecutableMBSE: Checkpoint of allocation wizard creating external connectors and proxy ports in the allocated architecture (F.J.Chadburn)

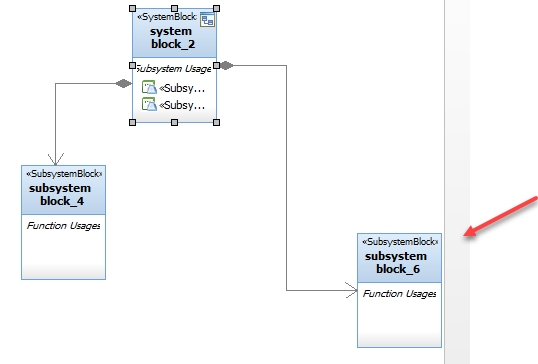

0769 03-NOV-2023: ExecutableMBSE: Tweak Populate Parts so that if you select a particular usage element it only resizes if bigger size is needed, else keeps existing size (F.J.Chadburn)



0770 03-NOV-2023: ExecutableMBSE: Promoted Populate Parts menu up to flat level so user doesn't need to dig into MBSE Method: Other menu to find it (F.J.Chadburn)

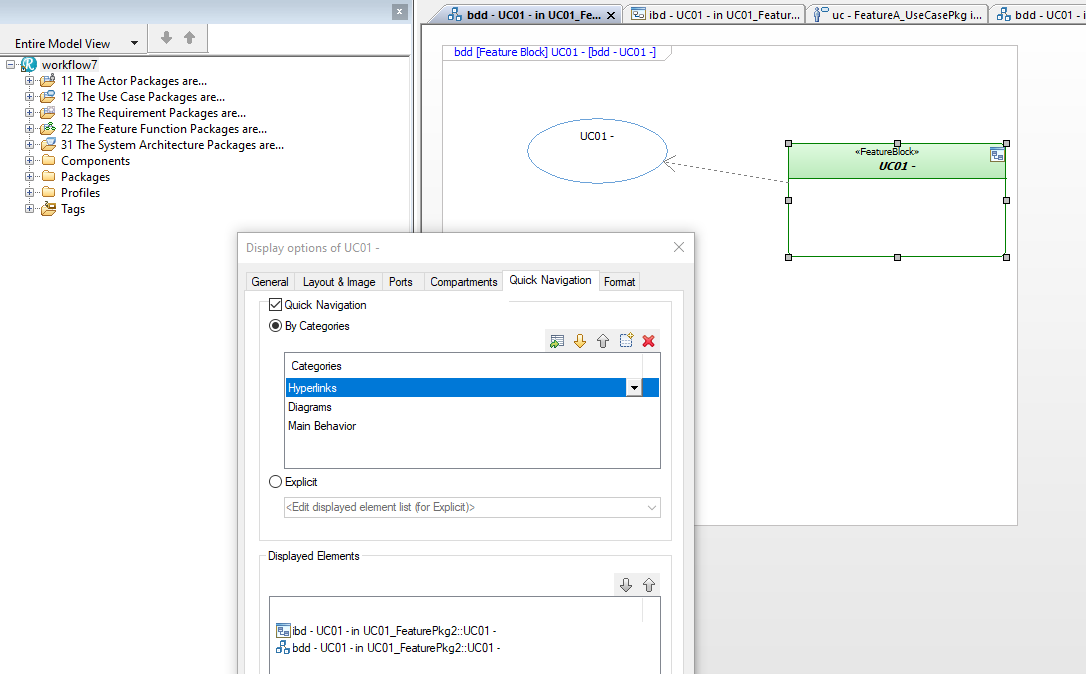

0771 03-NOV-2023: ExecutableMBSE: Tweaked QuickNavigationCategories for classifiers such as Feature/System/Subsystem/Function Blocks to favour ibds/hyperlinks (F.J.Chadburn)
